Gleichstromversorgungsanlagen
Einsatzbereiche
Gesicherte Gleichspannungsversorgungen sind immer dann erforderlich, wenn wichtige elektrische Verbraucher bei Netzausfall unterbrechungsfrei weiterversorgt werden müssen.
Unsere Anlagen bestehen aus den Komponenten Ladegleichrichter, Batterie und Verteilung. Sie werden stets dort eingesetzt, wo sicherheitsrelevante Verbraucher vorhanden sind. Das können zum Beispiel Schutz- und Prozessleittechnik, Mess- und Regelungstechnik, Antriebs- und Steuerungstechnik in den folgenden Bereichen sein:
- Kraftwerke
- Umspannanlagen
- Telekommunikationsnetze
- Chemieindustrie
- Stahlindustrie
- Raffinerien
- Verkehrsbetriebe und Bahnen
- Öl- und Gasversorgung
- Schiffbau
Betriebsart und Funktion
Die Ladeeinrichtung und die Batterie arbeiten im Bereitschaftsparallelbetrieb gemäß DIN EN 50272-2. Dadurch wird eine Betriebssicherheit und Zuverlässigkeit bei optimaler Wirtschaftlichkeit erreicht.
Bei Netzausfall versorgt die Batterie den Verbraucher unterbrechungslos und absolut zuverlässig über die projektierte Dauer. Nach Netzwiederkehr versorgt die Ladeeinrichtung automatisch den Verbraucher bei gleichzeitiger Aufladung der Batterie.
Komponenten

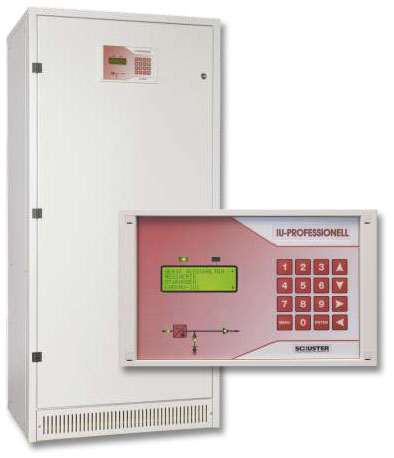

Die Gerätebaureihen IU-Professionell und IU-Control bestehen im Wesentlichen aus nachstehenden Baugruppen:
- Netzeingangssicherung
- Eingangstransformator
- Thyristorleistungsteil
- Regler
- Umschalter IU <> IUI
- Prozessor Bedien- und Überwachungseinheit
- RS 232 und RS 485
- Klemmen für Netz, Batterie und Verbraucher
Alle Anlagen werden individuell geplant und gefertigt – je nach Einsatzbereich, Anforderungsprofil und Kundenwunsch. Die Auswahl des Ladegleichrichters sowie der Batterie erfolgt unter Berücksichtigung folgender Parameter:
- Verbraucherspannung
- zulässige +/- Spannungstoleranz der Verbraucher
- maximal zulässige Restwelligkeit der Verbraucher
- Verbraucherstrom
- Überbrückungszeit
- Bauart der Batterie (Bleibatterie ver-/geschlossen oder Nickel- Cadmium-Batterie)
- Zellenanzahl
- Wiederaufladzeit der Batterie
Bei geringen Toleranzen in der Verbraucherspannung ist es erforderlich, den Ladegleichrichter mit geeigneten Zusatzeinrichtungen auszustatten. ð Optionen und Sonderausführungen
Eingangs-Spannung | Eingangs-Strom | Ausgangs-Spannung | Ausgangs-Strom | Gewicht | |
---|---|---|---|---|---|
V | A | V | A | kg | |
IU 24/26 230 20 | 230 | 4,8 | 24/26 | 20 | 35 |
IU 24/26 230 30 | 230 | 7,2 | 24/26 | 30 | 40 |
IU 24/26 230 40 | 230 | 9,2 | 24/26 | 40 | 45 |
IU 24/26 230 50 | 230 | 12 | 24/26 | 50 | 55 |
IU 24/26 230 60 | 230 | 13,6 | 24/26 | 60 | 70 |
IU 24/26 230 80 | 230 | 16,6 | 24/26 | 80 | 80 |
IU 24/26 230 100 | 230 | 21,9 | 24/26 | 100 | 100 |
IU 24/26 3x400 30 | 3x400 | 2,0 | 24/26 | 30 | 45 |
IU 24/26 3x400 40 | 3x400 | 2,7 | 24/26 | 40 | 55 |
IU 24/26 3x400 50 | 3x400 | 3,4 | 24/26 | 50 | 60 |
IU 24/26 3x400 60 | 3x400 | 4,0 | 24/26 | 60 | 80 |
IU 24/26 3x400 80 | 3x400 | 5,4 | 24/26 | 80 | 89 |
IU 24/26 3x400 100 | 3x400 | 6,7 | 24/26 | 100 | 150 |
IU 24/26 3x400 125 | 3x400 | 8,4 | 24/26 | 125 | 180 |
IU 24/26 3x400 150 | 3x400 | 10,1 | 24/26 | 150 | 230 |
IU 24/26 3x400 200 | 3x400 | 13,4 | 24/26 | 200 | 290 |
IU 24/26 3x400 250 | 3x400 | 16,8 | 24/26 | 250 | 310 |
IU 24/26 3x400 300 | 3x400 | 20,2 | 24/26 | 300 | 380 |
IU 24/26 3x400 350 | 3x400 | 23,5 | 24/26 | 350 | 420 |
IU 24/26 3x400 400 | 3x400 | 26,9 | 24/26 | 400 | 510 |
IU 24/26 3x400 500 | 3x400 | 33,6 | 24/26 | 500 | 670 |
IU 24/26 3x400 600 | 3x400 | 40,3 | 24/26 | 600 | 790 |
IU 24/26 3x400 800 | 3x400 | 53,7 | 24/26 | 800 | 960 |
IU 48 230 15 | 230 | 7,2 | 48 | 15 | 50 |
IU 48 230 20 | 230 | 9,6 | 48 | 20 | 55 |
IU 48 230 25 | 230 | 12,0 | 48 | 25 | 65 |
IU 48 230 30 | 230 | 14,4 | 48 | 30 | 70 |
IU 48 230 40 | 230 | 18,0 | 48 | 40 | 95 |
IU 48 230 50 | 230 | 24,0 | 48 | 50 | 110 |
IU 48 3x400 40 | 3x400 | 5,4 | 48 | 40 | 120 |
IU 48 3x400 50 | 3x400 | 6,7 | 48 | 50 | 125 |
IU 48 3x400 60 | 3x400 | 8,5 | 48 | 60 | 140 |
IU 48 3x400 80 | 3x400 | 10,8 | 48 | 80 | 170 |
IU 48 3x400 100 | 3x400 | 13,4 | 48 | 100 | 190 |
IU 48 3x400 125 | 3x400 | 16,8 | 48 | 125 | 200 |
IU 48 3x400 150 | 3x400 | 20,2 | 48 | 150 | 250 |
IU 48 3x400 200 | 3x400 | 26,9 | 48 | 200 | 290 |
IU 48 3x400 250 | 3x400 | 33,6 | 48 | 250 | 340 |
IU 48 3x400 300 | 3x400 | 40,3 | 48 | 300 | 420 |
IU 48 3x400 350 | 3x400 | 47,1 | 48 | 350 | 500 |
IU 48 3x400 400 | 3x400 | 53,8 | 48 | 400 | 550 |
IU 48 3x400 500 | 3x400 | 67,2 | 48 | 500 | 770 |
IU 48 3x400 600 | 3x400 | 80,7 | 48 | 600 | 950 |
IU 48 3x400 800 | 3x400 | 107,6 | 48 | 800 | 1180 |
IU 60 230 10 | 230 | 6,0 | 60 | 10 | 55 |
IU 60 230 15 | 60 | 9,0 | 60 | 15 | 60 |
IU 60 230 20 | 230 | 12,0 | 60 | 20 | 65 |
IU 60 230 25 | 230 | 15,0 | 60 | 25 | 84 |
IU 60 230 30 | 230 | 18,0 | 60 | 30 | 100 |
IU 60 230 40 | 230 | 24,3 | 60 | 40 | 115 |
IU 60 230 50 | 230 | 29,9 | 60 | 50 | 120 |
IU 60 3x400 40 | 3x400 | 6,7 | 60 | 40 | 125 |
IU 60 3x400 50 | 3x400 | 7,4 | 60 | 50 | 135 |
IU 60 3x400 60 | 3x400 | 9,1 | 60 | 60 | 145 |
IU 60 3x400 80 | 3x400 | 13,4 | 60 | 80 | 185 |
IU 60 3x400 100 | 3x400 | 16,8 | 60 | 100 | 210 |
IU 60 3x400 125 | 3x400 | 18,0 | 60 | 125 | 225 |
IU 60 3x400 150 | 3x400 | 22,2 | 60 | 150 | 265 |
IU 60 3x400 200 | 3x400 | 27,6 | 60 | 200 | 320 |
IU 60 3x400 250 | 3x400 | 39,7 | 60 | 250 | 350 |
IU 60 3x400 300 | 3x400 | 43,4 | 60 | 300 | 450 |
IU 60 3x400 350 | 3x400 | 48,5 | 60 | 350 | 530 |
IU 60 3x400 400 | 3x400 | 56,3 | 60 | 400 | 580 |
IU 60 3x400 500 | 3x400 | 33,6 | 60 | 500 | 750 |
IU 60 3x400 600 | 3x400 | 40,3 | 60 | 600 | 980 |
IU 60 3x400 800 | 3x400 | 53,7 | 60 | 800 | 1200 |
IU 108/110 230 2,5 | 230 | 2,7 | 108/110 | 2,5 | 30 |
IU 108/110 230 5 | 230 | 5,5 | 108/110 | 5 | 55 |
IU 108/110 230 10 | 230 | 11,0 | 108/110 | 10 | 68 |
IU 108/110 230 15 | 230 | 15,1 | 108/110 | 15 | 75 |
IU 108/110 230 20 | 230 | 19,9 | 108/110 | 20 | 85 |
IU 108/110 230 25 | 230 | 26,0 | 108/110 | 25 | 100 |
IU 108/110 230 30 | 230 | 32,9 | 108/110 | 30 | 115 |
IU 108/110 230 40 | 230 | 43,9 | 108/110 | 40 | 140 |
IU 108/110 3x400 30 | 3x400 | 8,2 | 108/110 | 30 | 145 |
IU 108/110 3x400 40 | 3x400 | 11,0 | 108/110 | 40 | 160 |
IU 108/110 3x400 50 | 3x400 | 13,8 | 108/110 | 50 | 220 |
IU 108/110 3x400 60 | 3x400 | 15,5 | 108/110 | 60 | 250 |
IU 108/110 3x400 80 | 3x400 | 20,7 | 108/110 | 80 | 320 |
IU 108/110 3x400 100 | 3x400 | 25,8 | 108/110 | 100 | 400 |
IU 108/110 3x400 125 | 3x400 | 32,5 | 108/110 | 125 | 430 |
IU 108/110 3x400 150 | 3x400 | 41,0 | 108/110 | 150 | 470 |
IU 108/110 3x400 200 | 3x400 | 52,6 | 108/110 | 200 | 540 |
IU 108/110 3x400 250 | 3x400 | 67,4 | 108/110 | 250 | 610 |
IU 108/110 3x400 300 | 3x400 | 78,3 | 108/110 | 300 | 850 |
IU 108/110 3x400 350 | 3x400 | 94,1 | 108/110 | 350 | 950 |
IU 108/110 3x400 400 | 3x400 | 105,6 | 108/110 | 400 | 1100 |
IU 108/110 3x400 500 | 3x400 | 132,0 | 108/110 | 500 | 1300 |
IU 108/110 3x400 600 | 3x400 | 158,0 | 108/110 | 600 | 1500 |
IU 216/220 230 2,5 | 230 | 5,5 | 216/220 | 2,5 | 45 |
IU 216/220 230 5 | 230 | 8,0 | 216/220 | 5 | 63 |
IU 216/220 230 10 | 230 | 15,9 | 216/220 | 10 | 85 |
IU 216/220 230 15 | 230 | 23,0 | 216/220 | 15 | 135 |
IU 216/220 3x400 15 | 3x400 | 8,3 | 216/220 | 15 | 150 |
IU 216/220 3x400 20 | 3x400 | 10,6 | 216/220 | 20 | 180 |
IU 216/220 3x400 25 | 3x400 | 13,0 | 216/220 | 25 | 195 |
IU 216/220 3x400 30 | 3x400 | 15,6 | 216/220 | 30 | 250 |
IU 216/220 3x400 40 | 3x400 | 21,7 | 216/220 | 40 | 300 |
IU 216/220 3x400 50 | 3x400 | 26,3 | 216/220 | 50 | 400 |
IU 216/220 3x400 60 | 3x400 | 31,0 | 216/220 | 60 | 430 |
IU 216/220 3x400 80 | 3x400 | 35,3 | 216/220 | 80 | 470 |
IU 216/220 3x400 100 | 3x400 | 49,6 | 216/220 | 100 | 510 |
IU 216/220 3x400 125 | 3x400 | 62,0 | 216/220 | 125 | 600 |
IU 216/220 3x400 150 | 3x400 | 76,4 | 216/220 | 150 | 750 |
IU 216/220 3x400 200 | 3x400 | 98,7 | 216/220 | 200 | 840 |
IU 216/220 3x400 300 | 3x400 | 151,0 | 216/220 | 300 | 950 |
IU 216/220 3x400 400 | 3x400 | 196,0 | 216/220 | 400 | 1050 |
IU 216/220 3x400 500 | 3x400 | 248,0 | 216/220 | 500 | 1180 |
IU 216/220 3x400 600 | 3x400 | 300,0 | 216/220 | 600 | 1490 |
